SR125 Solder sleeve/ Solder seal wire connectors

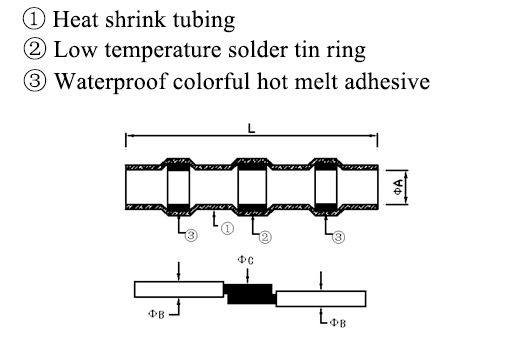

One piece design，it consists of transparent heat shrinkable sleeve and fluxed solder.
Provides insulation sanity and lower the installed cost. Color hot-melt glue on two ends of heat shrinkable tube，it‘s very convenience use for the exact wire dimension.
Provides insulation sanity and lower the installed cost. Color hot-melt glue on two ends of heat shrinkable tube，it‘s very convenience use for the exact wire dimension.
Application
One piece design，it consists of transparent heat shrinkable sleeve and fluxed solder.
Provides insulation sanity and lower the installed cost. Color hot-melt glue on two ends of heat shrinkable tube，it‘s very convenience use for the exact wire dimension.
Characteristics
Shrinking ratio 2:1
Waterproof for wiring splices , both ends contain hot melt adhesive for waterproof
Transparent sleeve provides precise inspection.
Simple and convenient to use
Operating temperature
Operating temperature range : -55℃～125℃
Minimum shrink temperature : 80˚C
Minimum fully recovery temperature : 120˚C
Solder complete melting temperature：138˚C
PRODUCTS
Product Description：
Property：

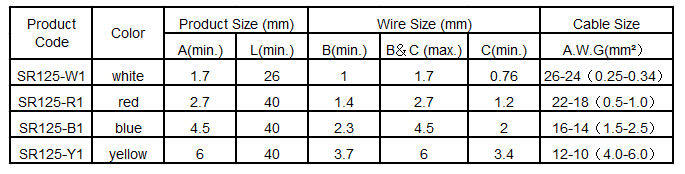

Size：
