Shrink ratio ≥3:1，anti-corrosion
Continuous working temperature: -55℃～110℃
Initial shrinkage temperature: 80℃
Minimum complete shrinkage temperature: 120℃
PRODUCTS
Heat Shrink Boots/Breakouts
DR-150 Heat Shrink Tubing
Dual Wall Heat Shrink Tube
PVDF Heat Shrink Tubing
V200 Fluoro Rubber Heat Shrink Tubing
K135 Single Wall Heat Shrink Tubing
Label Heat Shrink Tubing
Heavy Duty Heat Shrink Tubing
Non Slip Heat Shrink Tubing
Cold Shrink Tubing
Solder Sleeve
Heat Shrink Sealing Cap
Heat Shrink Cable Wrap
Electrical Equipment Package
Product Description：
Property：
Property | Test method | Typical data |
Tensile strength | ASTM D 2671 | ≥14MPa |
Tensile strength after aging （150℃,168hrs） | ASTM D 2671 | ≥12MPa |
Longitudinal shrinkage | ASTM D 2671 | 0~-10% |
Elongation at break | ASTM D 2671 | ≥400% |
Elongation after aging (150℃,168hrs) | ASTM D 2671 | ≥300% |
Breakdown strength | IEC 243 | ≥20KV/mm |
Density | ASTM D 792 | 1.05g/cm3 |
Volume resistivity | IEC 93 | ≥1014Ω•cm |
Copper stability | ASTM D 2671 | Pass |
Adhesive performance | ||
Water absorption | ISO 62 | ≤0.2% |
Softening Point | ASTM E 28 | 85℃ |
Peel strength (PE) | ASTM D 2671 | 4N/cm |
Antibacterial | ISO 846 | Pass |

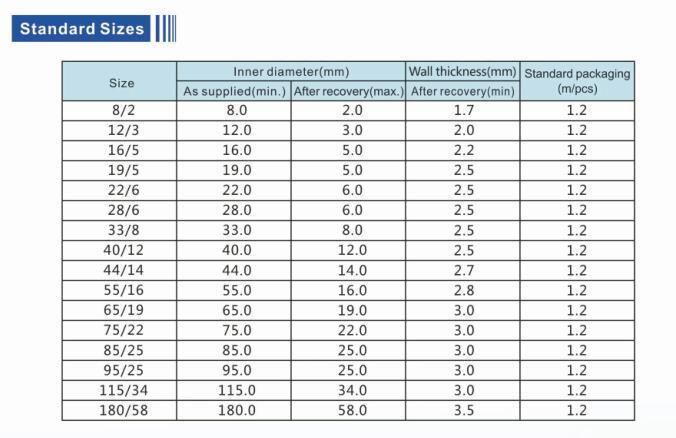

Size：
